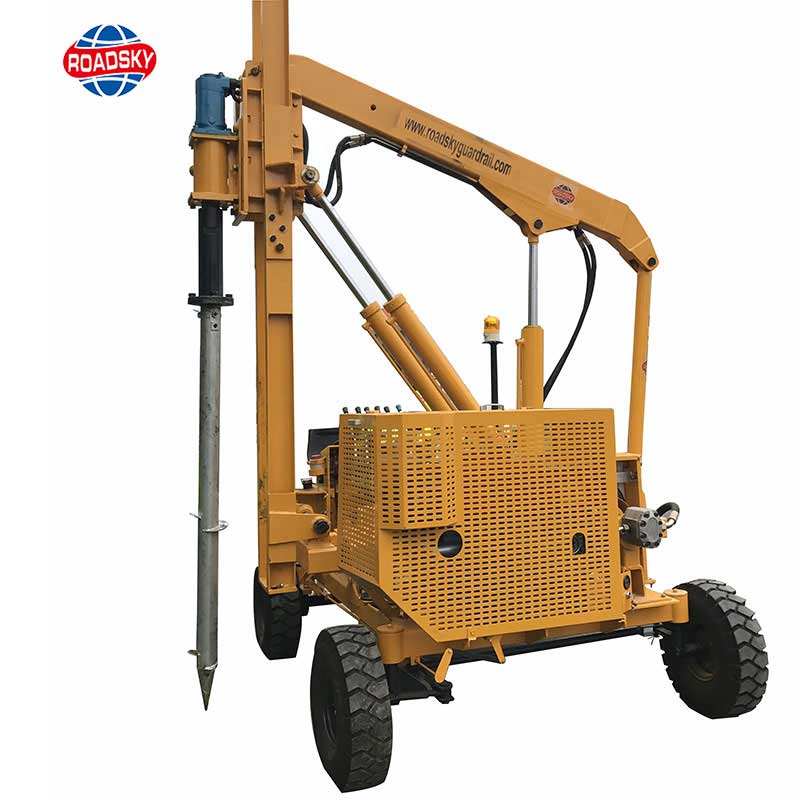

YZ series wheeled pile driver has multiple functions such as pile driving, pile extracting and drilling. It is applicable to different piles such as c type post, round post and screw post etc.
Specification:
| Model | Unit | YZ230 | YZ330 | |
| Pile Driver | Hammer Rating | joule | 600-800 | 900-1400 |
| Hammer Weight | kg | 230 | 330 | |
| Blows per minute | times | 600-900 | 500-735 | |
| Horse Power | HP | 24 | 32 | |
| Working Pressure | Mpa | 16-18 | 16-18 | |
| Oil Flow | L/min. | 36-65 | 45-65 | |
| Oil Tank Capacity | L | 80 | 100 | |
| Weight | kg | 2100 | 2400 | |
| Size (L*W*H) | mm | 2700*2300*2450 | ||
| Traveling Speed | km/h | 0-10 | ||
| Tow Speed | km/h | 0-50 | ||
| Pile Extractor | Size (L*W*H) | mm | 1200*700*950 | |
| Weight | kg | 300 | ||
| Pile Extracting Force | KN | 30 | 35 | |
| Pile Driller | Size (L*W*H) | mm | 3200*350*250 | |
| Weight | kg | 310 | 320 | |
| Air Flow | m3/min. | 13 | 18 | |
| Diamter of Drilling Holes | mm | 150 | 200 | |
| Max. Drilling Depth | mm | 1700 | ||
| Working efficiency | mm/min. | About 250 | ||
