BASIC INFO

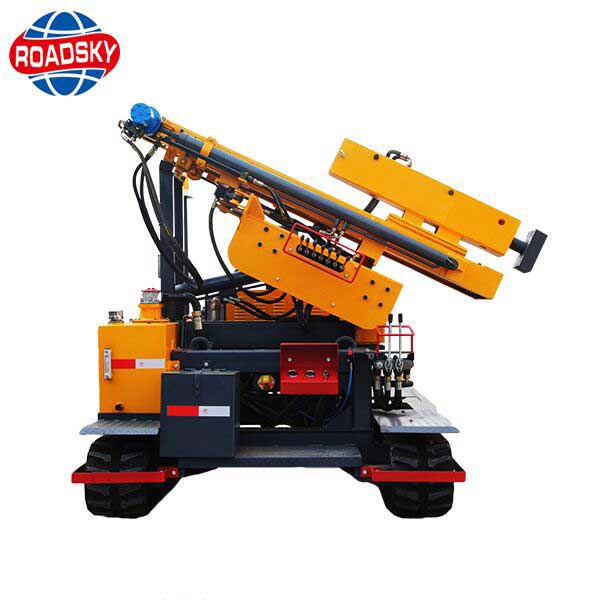

New-style PV crawler pile driver machine is a specialized piece of equipment used in the installation of solar panel systems, particularly in utility-scale solar projects. It combines the functionalities of a crawler (tracked vehicle) with a pile driver.
Specifications:
| Data | YC230 | YC330 |
|---|---|---|
| Hammer Rating | 600-800J | 900-1400J |
| Hammer Weight | 230kg | 330kg |
| Blows Per Min | 800-900times | 600-735times |
| Horse Power | 47H(YANMAR) | |
| Working Pressure | 16-18Mpa | 16-18Mpa |
| Oil Flow | 36-65L/min | 45-65L/min |
| Oil Tank Capacity | 80L | 80L |
| Weight | 2600kg | 2800kg |
| Size(L*W*H) | 2900*2200*2500mm | |
Parts:
Advantages of the Pile Driver Machine:
- Rugged design and high strength materials
- Guide rail equipped with double row chain for added safety
- Easy and smooth operation through high quality valves
Customer Case:
Our Certificate:
